Full Height IPS Panels with Shadow Gap - up to 1020mm wide

Full Height IPS Panels with Shadow Gap - up to 1020mm wide

Full Height IPS Panels with Shadow Gap - up to 1020mm wide

£673.79
(Inc. 20% VAT)
–
+
Availability:
Product ref
RR-IPS-MEDMFC-GSO

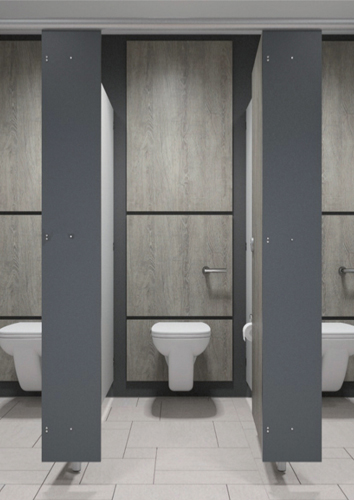

RapidFit IPS Panels are made to measure to ensure the perfect system for your needs. Designed to provide a stylish and robust panel system to suit a wide range of washrooms, including healthcare centres, hospitals, leisure centres, hotels and restaurants.

Pack includes:

  • 1 x full height (3000mm) panel up to 1020mm wide - made to order
  • Panel cut into three sections, as required
  • Black Shadow Gap included - 4 x strips
  • Includes clips for panels
  • Choose either MFC (18mmm depth) or Compact Grade (12mm depth)
  • Choice of 9 colours to create a stylish look

Choose between two materials to suit either light to medium use areas or high-volume traffic areas:

MFC

  • Suited to areas of light to medium use, such as offices
  • ​18mm moisture resistant MFC (Melamine Faced Chipboard) material composed of an engineered mix of woodchips and resin
  • Core moisture resistant furniture grade, making it perfectly suited to humid environments
  • Dense outer core for impact with a coarse inner core for fixing strength
  • Wrapped in a thicker carcass, with stronger fixings providing extra stability
  • 5 year guarantee

Compact

  • Suited for areas with high volume traffic, such as schools and bars
  • 12mm Compact Grade material manufactured from several layers of craft paper, impregnated with thermosetting resin
  • Compact Grade offers strengthened technical properties
  • Board is non-porous and therefore 100% waterproof, making it ideal for humid environments
  • Extremely hardwearing and vandal resistant
  • 10 year guarantee

Please call the sales office on 01923 268843 to discuss your requirements.

MFC

Panels:

  • Height (overall): Standard 1950mm FFL.
  • Floor Clearance: 150mm.
  • Depth: Standard 1500mm
  • Core material: Moisture Resistant Melamine-Faced Chipboard (MR MFC).
  • Thickness: 19mm.
  • Edge treatment: All edges square and lipped with 2mm PVC edging.
  • Wall Support: Nickel Powder Coated Aluminium U – Channel brackets with bolt through fixings
Pilasters:
  • Panel Height: 1800mm.
  • Core material: Moisture Resistant Melamine-Faced Chipboard (MR MFC).
  • Thickness: 19mm.
  • Edge treatment: All edges square and lipped with 2mm PVC edging.
  • Ironmongery: Nickel Powder Coated Aluminium U – Channel brackets with bolt through fixings
Doors:
  • Panel Height: 1800mm.
  • Core material: Moisture Resistant Melamine-Faced Chipboard (MR MFC) Pre-drilled to suit Hinge and
  • Indicator bolt positions.
  • Thickness: 19mm.
  • Edge treatment: All edges square and lipped with 2mm PVC edging.
  • Ironmongery: Indicator Bolt - Coin operated emergency release including keeper with concealed fixings. Hinges - Nickel Powder Coated Aluminium butt hinges with nylon cams to set closed door position. Coat Hook: Nickel Powder Coated Aluminium coat hook with buffer.
Fittings:
  • Headrail: Nickel Powder Coated Aluminium.
  • Legs: 150mm high Nickel Powder Coated Aluminium adjustable legs.
Accessories:
  • Headrail End Caps: Nickel Powder Coated Aluminium, to suit corner sited / free standing cubicles.
  • Outward Opening Keeper: Nickel Powder Coated Aluminium, to suit outward opening doors
Compact Grade

Panels:

  • Height (overall): Standard 1950mm FFL.
  • Floor Clearance: 150mm.
  • Depth: Standard 1500mm
  • Core material: Solid Grade Laminate (SGL) with Phenolic Core.
  • Thickness: 12mm.
  • Colour: From the Rearo Rapidfit colour chart.
  • Edge treatment: All edges bullnosed / profiled as standard.
  • Wall Support: Nickel Powder Coated Aluminium U – Channel brackets with bolt through Fixings.

Pilasters:

  • Panel Height: 1800mm
  • Core material: Solid Grade Laminate (SGL) with Phenolic Core.
  • Thickness: 12mm.
  • Colour: From the Rearo Rapidfit colour chart.
  • Edge treatment: All edges bullnosed / profiled as standard.
  • Ironmongery: Nickel Powder Coated Aluminium U – Channel brackets with bolt through Fixings.

Doors:

  • Panel Height: 1800mm.
  • Core material: Solid Grade Laminate (SGL) with Phenolic Core. Pre-drilled to suit Hinge and Indicator bolt positions.
  • Thickness: 12mm.
  • Colour: From the Rearo Rapidfit colour chart.
  • Edge treatment: All edges bullnosed / profiled as standard.
  • Ironmongery: Indicator Bolt - Coin operated emergency release including keeper with concealed fixings. Hinges - Nickel Powder Coated Aluminium bolt through hinges with nylon cams to set closed door position. Coat Hook: Nickel Powder Coated Aluminium coat hook with buffer.

Fittings:

  • Headrail: Nickel Powder Coated Aluminium ‘D’ section.
  • Legs: Nickel Powder Coated Aluminium 150mm high adjustable legs.

Accessories:

  • Headrail End Caps: Nickel Powder Coated Aluminium, to suit corner sited / free standing cubicles.
  • Outward Opening Keeper: Nickel Powder Coated Aluminium, to suit outward opening doors.
Additional Product Information

Installation

  • Do not install cubicles or duct/wall panels before building is weathertight, wet trades have finished their work, wall and floor finishes are complete, and the building is well dried out.
  • Accuracy: Set out to ensure frames and/or panels and doors are plumb, level and accurately aligned.
  • Modifications: Do not cut, plane or sand prefinished components except where shown on drawings.
  • Fixing: Secure components using methods and fasteners recommended by the cubicle/ panel manufacturer. Prevent pulling away, bowing or other distortions to frames, panels and doors.
  • Moisture and thermal movement: Make adequate allowance for future movement
